McHale Fusion 4 Plus Integrated Baler Wrapper

The new McHale Fusion 4 range has been developed with a focus on operator comfort and machine performance, while still ensuring the renowned simplicity and reliability is maintained.

Our specialist team of engineers have maximised machine intake and output, increased bale density and reduced maintenance intervals to ensure the Fusion 4 range of machines surpasses all your baling and wrapping expectations.

These levels of comfort, when paired with proven features such as the patented bale transfer system and the vertical wrapping ring, enable the McHale Fusion 4 range of machines to offer durability, reliability and high output to the end user.

Overview

The McHale Fusion 4 Plus is a fully automatic integrated baler wrapper which is controlled using ISOBUS. The McHale Fusion 4 Plus provides new levels of operator comfort with it’s easy-to-use control system, in-cab net & density adjustment, camera, and faster wrapping speeds along with a host of other new features.

The McHale Fusion 4 Plus uses net of film to bind the bale in the chamber and features the McHale patented bale transfer and vertical wrapping ring, which are noted for their reliability, speed and positive bale transfer in hilly conditions.

Fusion 4 Plus Advantages

In-Cab Adjustment

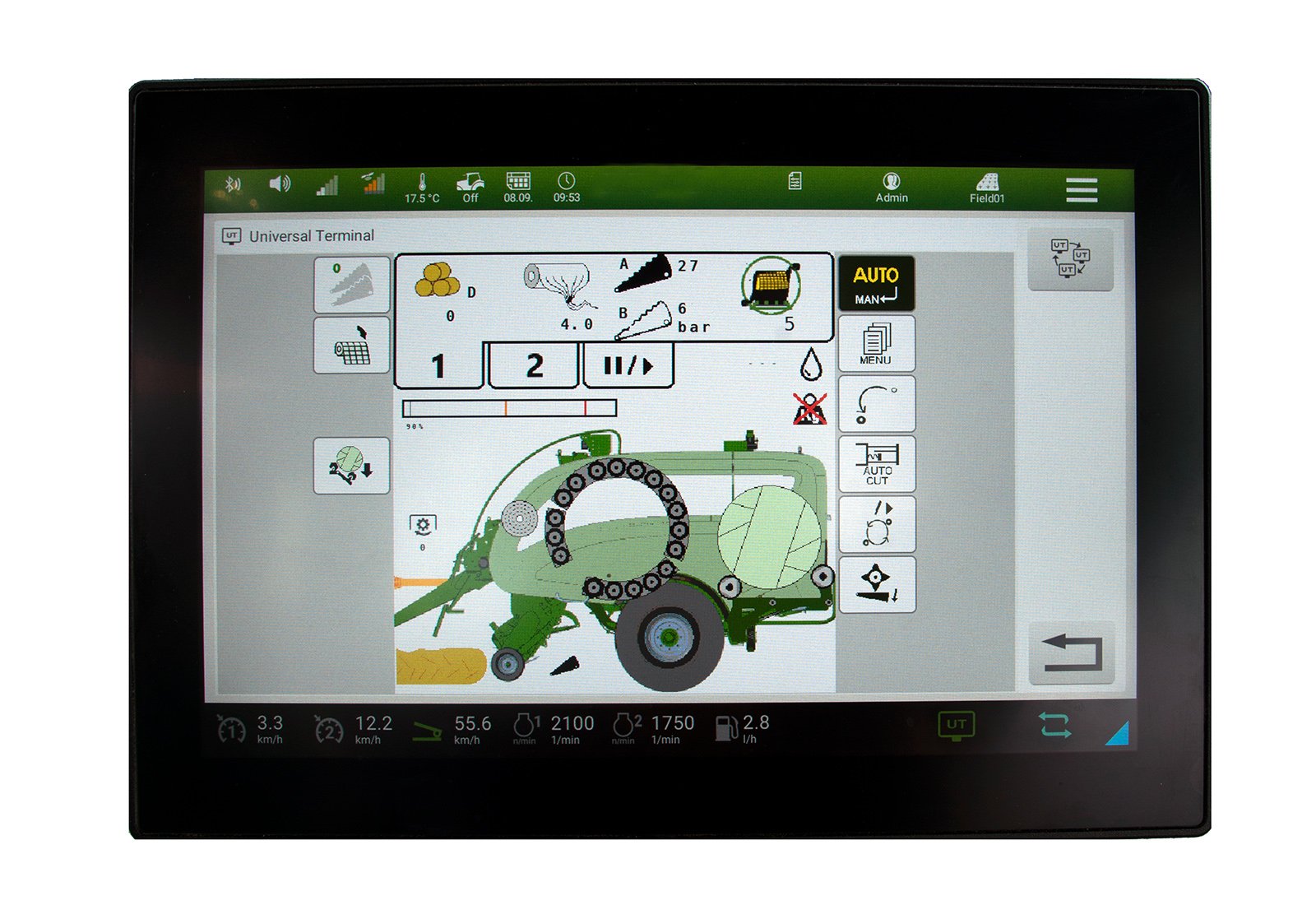

The ISOBUS control terminal allows for bale density to be adjusted from the comfort of the tractor cab. Depending on the crop and conditions, the operator can also adjust the number of layers of net on the control terminal.

Drop Floor Unblocking

The drop floor unblocking system is fitted with an automatic unblocking function as standard. When connected to an ISOBUS tractor, the Auto Unblock feature lowers the floor when a blockage is detected. Once the operator restarts the PTO and clears the blockage, the drop floor will raise to its original position.

Control Terminals

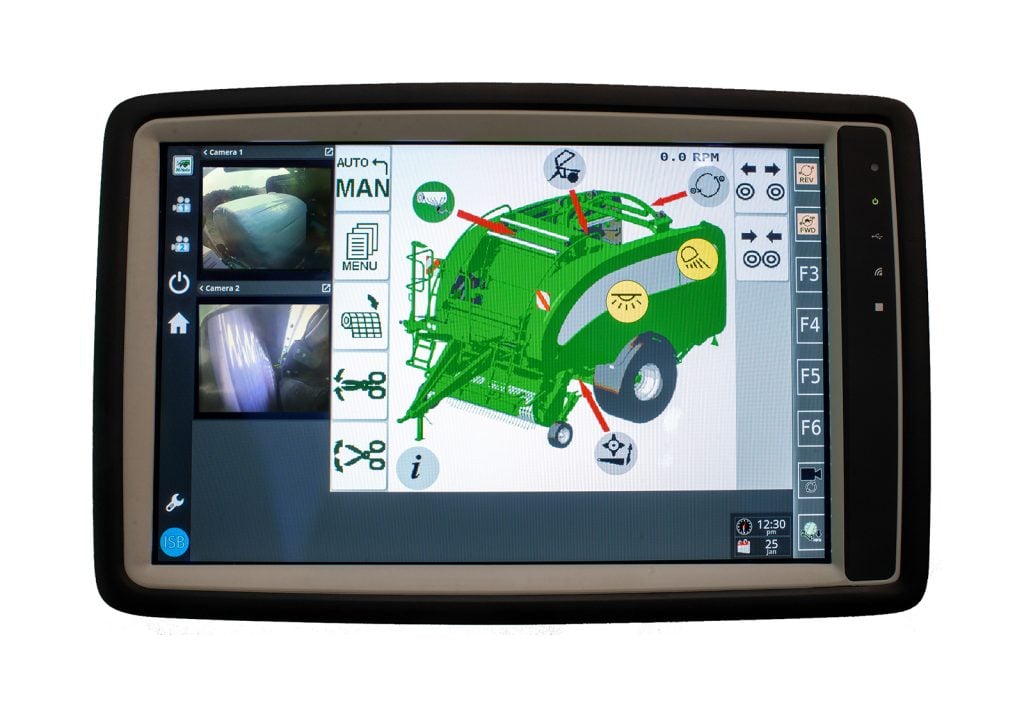

The McHale Fusion 4 Plus is fitted with ISOBUS as standard. For customers without an ISOBUS tractor, an optional ISO-PLAY 7 or ISO-PLAY 12 terminal can be used. Through the ISOBUS tractor’s terminal or McHale’s ISO-PLAY terminals, the operator is provided with clear indicators of machine performance and allows for increased levels of monitoring, through the graphic display.

Camera Display as Standard

The McHale Fusion 4 Plus comes fitted with a camera as standard to monitor the transfer and wrapping operation at the rear of the machine. When using an ISO-PLAY terminal, this camera automatically displays on the control terminal in the tractor cab when the bale is being transferred to the wrapping table, at the beginning of the wrapping cycle and when the bale is about to be tipped.

Standard Features

2.1m Profi-Flo Pick-Up

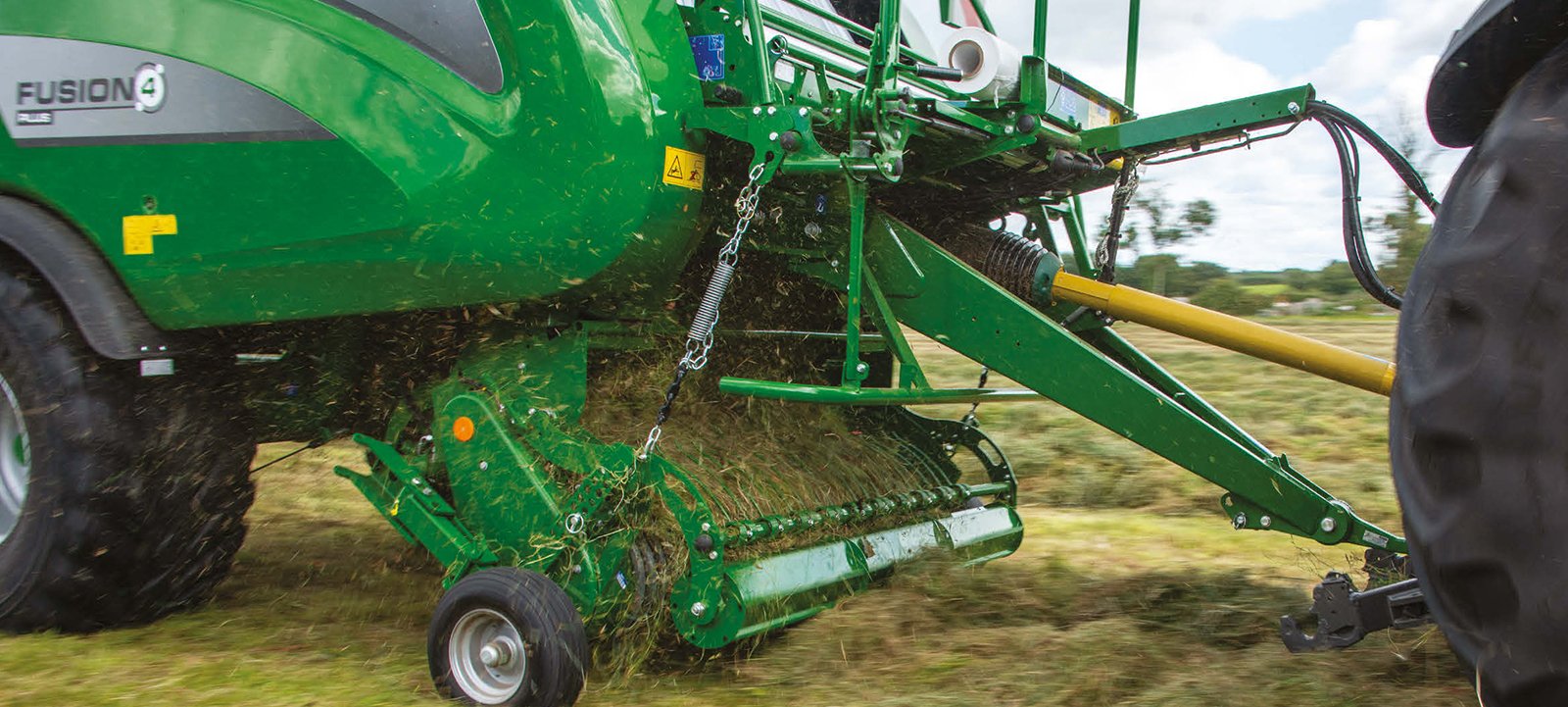

25 Knife Heavy Duty Feed Rotor

Drop Floor Unblocking System

50 & 55 mm Bale Chamber Bearings*

1¼” Chain on the Bale Chamber

Automatic Progressive Greasing System

Automatic Oiling System (with Lube Interval Adjustment & Alarm)

ISOBUS Compatibility

560/60-22.5 Tyres

18 Roller Bale Chamber

4 Bar Pivot Stretch Netter

Vertical Wrapping Ring with Film Break Sensors
